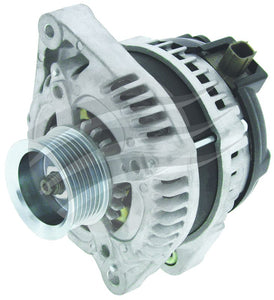

Jaylec Alternator 65-8519
65-8519Jaylec 65-8519 Alternator
12V 130A HONDA ACCORD 2.4L 2008-15 K24Z2 K24Z3
| Specifications | |
| Voltage | 12V |
| Amperage | 130A |
| Mount Leg ID | 35mm |
| C-C Mounts | 168mm |
| Hole ID Top | 8mm |
| Hole ID Bottom | 10mm, M10 |
| Shaft Size | |
| Pulley Type | 7PV |
| Pulley Belt Width | |
| Pulley Grooves | 7 |
| Pulley Diameter | 60mm |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP133 |
| Terminals | B+, IG, L, C, FR |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 8.0kg |
