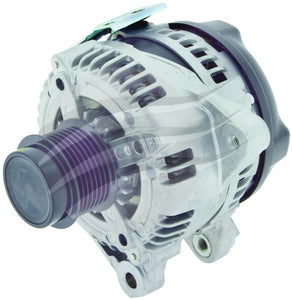

Jaylec Alternator 65-8577
65-8577Jaylec 65-8577 Alternator
100A TOYOTA RAV4 ACA33R 06-13 2AZFE 2.4L IG/L/RLO/M
| Specifications | |
| Voltage | 12V |
| Amperage | 130A |
| Mount Leg ID | 46mm |
| C-C Mounts | 123mm |
| Hole ID Top | M8 |
| Hole ID Bottom | 10mm, M10 |
| Shaft Size | |
| Pulley Type | 7PV, CLUTCH |
| Pulley Belt Width | |
| Pulley Grooves | 7 |
| Pulley Diameter | 64mm |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP123 |
| Terminals | B+, IG, L, RLO, M |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 7.0kg |
